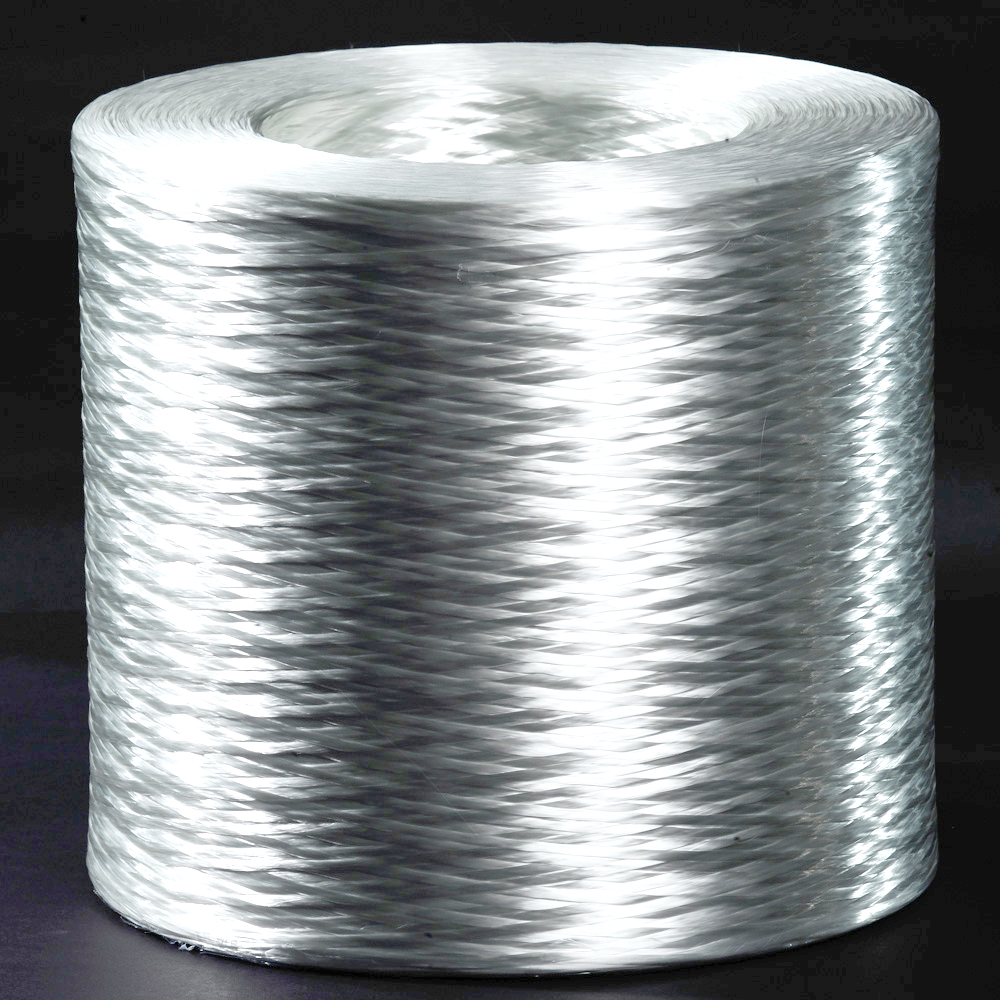

			Direct Roving Direct Roving is a collection of specific numbers of untwisted continuous glass filaments produced by pulling directly from the bushing and winding fibers into a cylindrical package. No further process is applied, so assuring good quality stability. Direct Roving is tubeless and designed to be pulled out from the inner side. It is reinforcement for pultrusion, filament winding, weaving, and long fiber thermoplastic (LFT) process. Suitable applications include length-limitless poles, tubes, and structural products with high strength and high fiber content.

Feature：
‧Excellent processing and handling characteristics. ‧The silane sizing is specifically designed for fast wet-out. ‧Packages are designed to provide smooth runout. ‧Excellent adhesion with resins.
Products and Applications：
Product Product Characteristic Resin System Example of End-Product Application 346 Designed for epoxy resin system used in filament winding process Epoxy Oil field pipes, Chemical pipes 351 Fast wet out, great applicability in weaving and filament winding processes U.P. / V.E. / Epoxy Tool hafts, Tanks, Arrows, Umbrella structure parts 366 Standard Spec. for pultrusion process 442 Long Fiber Thermoplastic (LFT) PP Auto-parts 474 PA 463 PC 315 (GL) Specially designed for multiaxial weaving and filament winding processes Epoxy Windmill blades
Significant Physical Properties：
Product *1 Nominal Filament Diameter (μm) TEX (Nom. ± Variation) (g/1000m) Solids (Nom. ± Variation) (%) Moisture Content (% max) Weight (Nominal) (kg/roll) 346 1,100 16 1,100 0.55 ± 0.15 <  0.06 20 2,300 17 2,300 0.60 ± 0.15 351 275 13 275 0.65 ± 0.20 17 400 16 400 18 600 13 600 735 13 / 15 735 1,200 17 1,200 0.55 ± 0.15　 20 2,400 2,400 366 600 13 600 0.42 ± 0.10 18 735 13 / 15 735 1,200 17 1,200 20 2,200 16 2,200 0.50 ± 0.12 4,400 23 4,400 0.60 ± 0.15 18 8,800 33 8,800 0.70 ± 0.15 9600 34 9,600 442 275 13 275 0.70 ± 0.20 17 1,200 17 1,200 0.80 ± 0.20 20 2,400 2,400 474 1,200 17 1,200 0.50 ± 0.15 20 2,400 2,400 463 1,200 17 1,200 0.50 ± 0.15 20 2,400 2,400 315 2,400 17 2,400 0.50 ± 0.15 20  *1 Production range from 200 tex to 9600 tex upon request.
Packaging & Palletizing：
Rovings / package *1 (L x W x Layer) Package dimension *2 L x W x H (mm) Domestic 64 (4 x 4 x 4) 1140 x 1140 x 1210 Export 48 (4 x 4 x 3) 1140 x 1140 x  965 64 (4 x 4 x 4) 1140 x 1140 x 1225
*1 Each roving is protected by shrink-wrap PVC bag.  *2 Package dimension contains pallet stature.
64 Direct Rovings package (Domestic)	64 Direct Rovings package (Export)
Storage Conditions：
Store Direct Roving in a cool, dry area.  Suitable temperature : 21±11℃ , R.H. : 60±20％. (Temperature should not exceed 35℃ & R.H. should be kept below 75％ is also recommended). It is recommended to bring material in the working place 24 hours at least prior to use. Optimal atmospheric processing conditions are: temperature 20 ~ 22℃), R.H. 60 ~ 65%. Do not stack higher than two pallets.
Examples of Applications：
Glass fiber is an inorganic fiber completely incombustible. Glass fiber has excellent electrical insulation properties, high tensile strength in relation to weight and dimensional stability, good weather and corrosion resistance. Glass fiber is an excellent reinforcement material, has low cost, high strength-to–ratio advantages comparing to aluminum or other metals. Direct Roving is typically used to make all diameters and specifications of pipe (for water, oil, chemicals, etc.), gratings, rods, poles, cooling/water towers, corrosion-resistant tanks, high-pressure containers. It can also be woven into fabrics for boats, wind turbines, etc. Applications include transportation, aerospace, electronic appliances, marine, housing and construction, industrial/public facilities, sports/recreation, etc.
