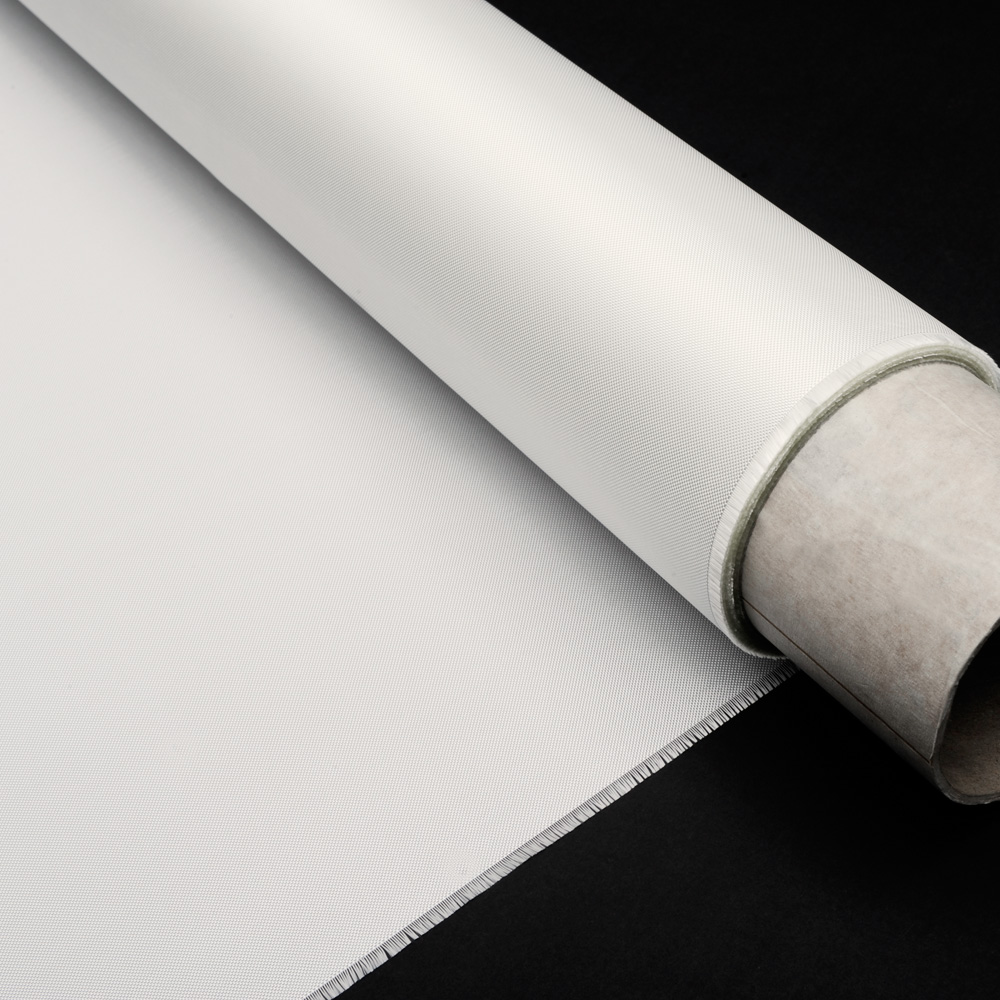

TGI Glass fabric：
TGI Fiberglass Fabric Spec
| Style |
Yarn
Warp × Fill |
Count / inch
Warp × Fill |
Basic Weight
(g/m2) |
Thickness
(mm) |
| 1006 |
BC 5000 1/0 × BC 5000 1/0 |
105 × 110 |
8.5 |
0.011 |
| 1010 |
BC 3750 1/0 × BC 3750 1/0 |
96.5 × 96.5 |
10.1 |
0.011 |
| 1000 |
BC 3000 1/0 × BC 3000 1/0 |
85 × 85 |
11 |
0.012 |
| 1017 |
BC 3000 1/0 × BC 3000 1/0 |
95 × 95 |
12.3 |
0.014 |
| 1015 |
BC 2250 1/0 × BC 2250 1/0 |
96 × 96 |
16.9 |
0.015 |
| 1027 |
BC 1500 1/0 × BC 1500 1/0 |
75 × 75 |
19.9 |
0.019 |
| 1037 |
C 1200 1/0 × C 1200 1/0 |
70 × 73 |
23 |
0.027 |
| 1024 |
BC 1500 1/0 × BC 1500 1/0 |
91 × 91 |
23.8 |
0.022 |
| 106 |
D 900 1/0 × D 900 1/0 |
56 × 56 |
24.4 |
0.031 |
| 1030 |
C 1200 1/0 × C 1200 1/0 |
91 × 91 |
29.7 |
0.026 |
| 1035 |
D 900 1/0 × D 900 1/0 |
66 × 68 |
30 |
0.028 |
| 1067 |
D 900 1/0 × D 900 1/0 |
70 × 68 |
30.2 |
0.032 |
| 1080 |
D 450 1/0 × D 450 1/0 |
60 × 47 |
47 |
0.046 |
| 1078 |
D 450 1/0 × D 450 1/0 |
54 × 54 |
47.8 |
0.043 |
| 1280 |
D 450 1/0 × D 450 1/0 |
60 × 58 |
52 |
0.051 |
| 2112 |
E 225 1/0 × E 225 1/0 |
40 × 39 |
69 |
0.081 |
| 2113 |
E 225 1/0 × D 450 1/0 |
60 × 56 |
78 |
0.075 |
| 2313 |
E 225 1/0 × D 450 1/0 |
60 × 64 |
81 |
0.075 |
| 3313 |
DE 300 1/0 × DE 300 1/0 |
60 × 62 |
81 |
0.075 |
| 2125 |
E 225 1/0 × G 150 1/0 |
40 × 39 |
86 |
0.091 |
| 2116 |
E 225 1/0 × E 225 1/0 |
60 × 57 |
104 |
0.090 |
| 2165 |
E 225 1/0 × G 150 1/0 |
60 × 52 |
120 |
0.101 |
| 1652 |
G 150 1/0 × G 150 1/0 |
52 × 52 |
138 |
0.114 |
| 1504 |
DE 150 1/0 × DE 150 1/0 |
60 × 50 |
148 |
0.135 |
| 1506 |
E 110 1/0 × E 110 1/0 |
46 × 45 |
164 |
0.135 |
| 1500 |
E 110 1/0 × E 110 1/0 |
49 × 42 |
164 |
0.135 |
| 7628L |
G 75 1/0 × G 75 1/0 |
44 × 31 |
202 |
0.166 |
| 7628M |
G 75 1/0 × G 75 1/0 |
44 × 33 |
210 |
0.170 |
| 7628U |
G 67 1/0 × G 67 1/0 |
42 × 34 |
220 |
0.178 |
| 7637 |
G 75 1/0 × G 37 1/0 |
44 x 21 |
228 |
0.224 |
| 7196 |
G 67 1/0 × G 67 1/0 |
44 × 36 |
233 |
0.185 |
TD (LOW DK) Fabrics Spec
| Style |
TD Yarn
Warp × Fill |
Count / inch
Warp × Fill |
Basic Weight
(g/m2) |
Thickness
(mm) |
| TD1017 |
BC 3400 x BC 3400 |
95 x 95 |
11 |
0.014 |
| TD1027 |
BC 1700 x BC 1700 |
75 x 75 |
17.5 |
0.019 |
| TD1037 |
C 1360 x C 1360 |
70 x 73 |
21 |
0.027 |
| TD106 |
D 1020 x D 1020 |
56 x 56 |
22 |
0.031 |
| TD1035 |
D 1020 x D 1020 |
66 x 68 |
27 |
0.028 |
| TD1067 |
D 1020 x D 1020 |
70 x 68 |
27.5 |
0.032 |
| TD1080 |
D 510 x D 510 |
60 x 47 |
42 |
0.046 |
| TD1078 |
D 510 x D 510 |
54 x 54 |
42 |
0.048 |
| TD1280 |
D 510 x D 510 |
60 x 58 |
46 |
0.051 |
| TD2013 |
E 255 x E 255 |
47 x 45 |
72 |
0.075 |
| TD3313 |
DE 340 x DE 340 |
60 x 62 |
72 |
0.075 |
| TD2116 |
E 255 x E 255 |
60 × 57 |
92 |
0.090 |
Roll length, core tube & Splice Date：
Basic weight
(g/m2)
| Roll length
(m)
| Paper core I.D.
(mm)
| Min. length of non splice
|
| 170↑ |
≧1800 |
76/151 |
400m |
| 100~170 |
≧1800
|
76/151 |
400m |
| 30~100 |
≧1500
|
151 |
400m |
| 30↓ |
1000~2200 |
151 |
400m |
Examples of Applications：
Packaging：
Standard export carton (inner & outside look)
1,420 / 1,275 / 1,125 x 830 / 830 / 800 x 1,030 / 1,030/990mm
for #7628-50” / 44” / 38” 2.5km / Per roll
1,420 / 1,275 x 750 / 750 x 960 / 960mm
for #7628-50” / 44” 2.0km / Per roll
1,420 / 1,275 x 750 / 750 x 960 / 960mm
for #2116-50” / 44” 3.0km / Per roll
1,420 / 1,275 x 560 / 560 x 780 / 780mm
for #2116-50” / 44” 2.0km / Per roll
1,420 / 1,275 x 560 / 560 x 780 / 780mm
for #1080-50” / 44” 2.0km / Per roll
Note: Pallet included
Fabric steel frame for domestic delivery
1,430 X 850 X 1,070mm
Steel frame for European delivery
1,420 x 850 x 1,090mm
Wooden box for Japanese delivery
1,430 x 1,040 x 1,230mm
