Laminated
Glass
Laminated glass is formed as a
sandwich of 2 sheets of glass,
between which is bonded together
with a tough and thermoplastic
polyvinyl butyral (PVB) interlayer
under heat and pressure.

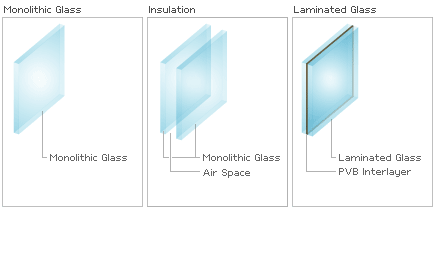

Laminated Glass Configuration
|
|
 |
Benefits
| • |
Extremely
high safety |
| |
The
PVB interlayer withstands
penetration from impact.
Even if the glass
cracks, splinters
will adhere to the
interlayer and not
scatter. In comparison
with other kinds of
glass, laminated glass
has much higher strength
to resist shock, burglary,
burst and bullets.
|
| • |
Energy-saving
building materials |
| |
PVB
interlayer impedes
the transmission of
solar heat and reduces
cooling loads.
|
| • |
Create
aesthetic sense to
buildings |
| |
Laminated
glass with a tinted
interlayer will beautify
the buildings and
harmonize their appearances
with surrounding views
which meet the demand
of architects.
|
| • |
Sound
control |
| |
PVB
interlayer is an effective
absorber of sound.
|
| • |
Ultraviolet
screening |
| |
The
interlayer filters
out ultraviolet rays
and prevents the furniture
and curtains from
fading effects.
|
|
|
| back
to top |
|
Applications
| • |
Architecture |
| • |
Automotive
windshield |
| • |
Bullet/burst-proof
purpose |
| • |
Furniture |
| |
 |
Australian
Standard
AS/NZS 2208
ID 2022
Grade A
LF 6.38 |
(Certified
approval of Australian
standard AS/NZS
2208 by Benchmark
of Australia)
|
|
|
| back
to top |
|
Specification
| • |
Max.
size |
For
architecture 96"
x 144" (2438mm
x 3658mm)
For automobile 39"
x 86.5"(991mm
x 2197mm) |
| • |
TGI
Laminated Glass Item
Codes |
| |
| |
|
| Automotive
Glass |
|
| |
| |
| |
| Architectural
Glass |
|
| |
| |
| |
| |
| |
| |
| |
| Burst-Proof
Glass |
|
| |
| |
| Bullet-Proof
Glass |
|
| |
| |
| |
| |
|
|
|
| |
|
|
|
| back
to top |
|
Vanceva
Color and Vanceva Pattern
Vanceva Color and
Vanceva Pattern interlayers
are composite films, which
allow decorative laminated
glass to be manufactured,
thanks to the choice of
colors and patterns they
offer. Encapsulated between
two films of PVB and inserted
between two layers of glass,
the patterns are totally
protected against outside
stresses, and remain stable
over the years. Different
interlayers can also be
combined, offering new and
unique decorative opportunities.
These films retain qualities
specific to PVB: safety
for people, security, acoustic
insulation and protection
against UV rays. They break
new ground by proposing
a wide range of colors and
patterns, which can be used
in any combination, allowing
the most creative projects
to be achieved and glass
to be used where it would
not have been possible before.
To fulfill all your projects
in laminated glass, you
can combine Vanceva Color
and Vanceva Pattern interlayers,
by playing with nuances
and patterns to create your
own design. You can also
contact our company for
Vanceva product catalogs
or glass samples made with
Vanceva Color and Vanceva
Pattern.
Vanceva Laminated
Glass Composition
|
|
